In a production environment with strict control of air cleanliness and cross contamination, the lifting and handling equipment of materials must take into account multiple requirements such as dust-free, anti-static, easy to clean, and efficient and flexible. The following are common cleanroom material lifting equipment to help you make the best decision when selecting and laying out.

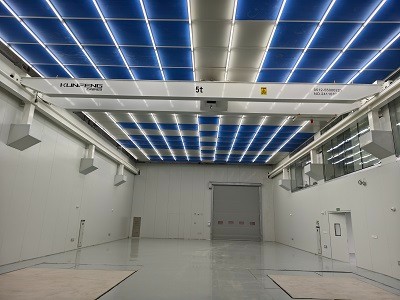

Cleanroom single-beam/double-beam bridge crane
● Adopt 304/316L stainless steel or dust-proof spray-coated main beam and end beam, with fully enclosed chain hoist or belt hoist.
● With the advantages of large span, high load capacity (0.5-20 t) and precise positioning, it is suitable for point-to-point lifting of barrels, containers, assembly tools, etc. in clean areas.

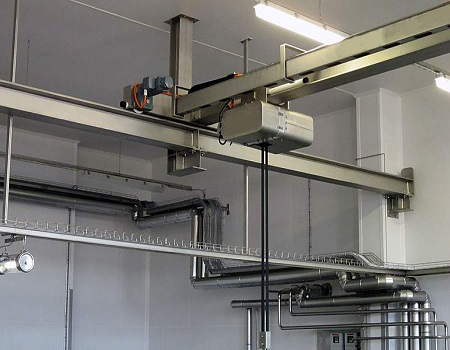

KBK single-beam workstation system
● A combination of aluminum alloy profile light rail and micro electric trolley, with a load of 0.2-2 t, networked and modularized tracks, to meet the needs of flexible distribution of multiple stations.
● No need to install columns, quick installation, suitable for narrow corridors and areas with limited net height.
Wall-mounted jib crane
● The column is fixed to the wall or main beam, and the jib can rotate 180° without occupying ground space.
● Equipped with medical-grade electric hoists or chain hoists, it is suitable for partial lifting of assembly tables and inspection workstations.
● Single or double arms rotate independently, covering two working areas, and can perform dual-point lifting or collaborative handling at the same time.
● Modular arm length and height are adjustable to flexibly meet the needs of multiple workstations.
Clean room mobile gantry crane
● Universal brake wheel support, no track installation required, suitable for temporary or small batch replacement of workstations;
● Suitable for light load (≤2t) small parts lifting and sorting in laboratories or R&D areas.
Selection points and maintenance points
● Clean level matching: Select materials and surface treatment processes according to ISO 14644-1 (or GMP) standards to ensure that equipment components do not generate particles.
● Anti-static and anti-corrosion: Aluminum alloy, 304/316L stainless steel or special anti-static coating is used to avoid static electricity accumulation and corrosion.
● Easy-to-clean design: There are no dead corners in the welds, and the parts can be quickly disassembled and assembled, which is convenient for regular flushing, wiping and disinfection.
● Multiple safety protections: Equipped with overload limit, high and low position limit, emergency stop, collision protection and closed track or cover to ensure the safety of personnel and products.
● Regular inspection and lubrication: Perform track straightness and flatness inspection according to the requirements of the equipment manual, check the grease condition and remove dust, and maintain seals and electrical connections.
Clean room material lifting equipment can build a three-dimensional flexible logistics network covering different workstations, processes and cleanliness level requirements, realize "zero particles, zero static electricity, high efficiency" full-process material handling, and provide solid clean support for pharmaceutical, semiconductor, biotechnology, precision manufacturing and other industries. Welcome to contact us for free customized solutions!
