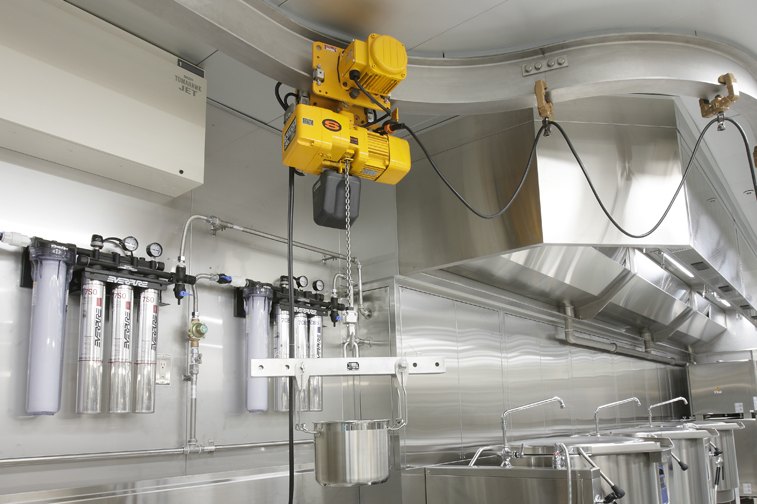

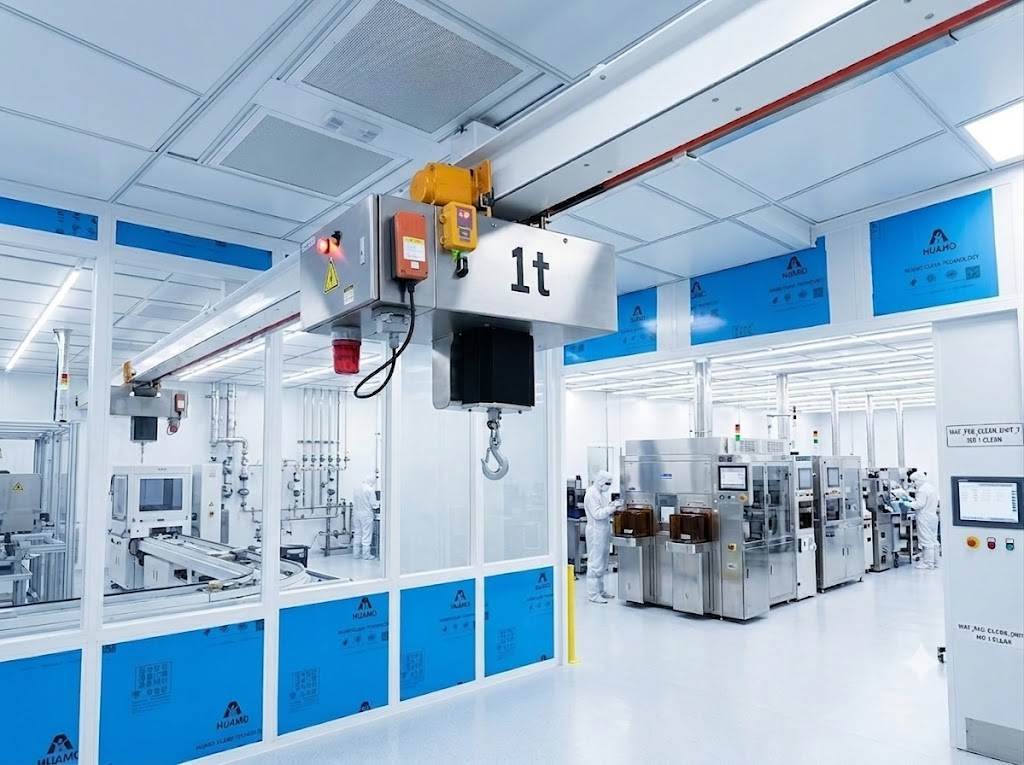

Cleanroom monorail workstation crane is ceiling mounted rail system designed for hygienically controlled environments, enabling efficient and precise lifting and handling of materials.

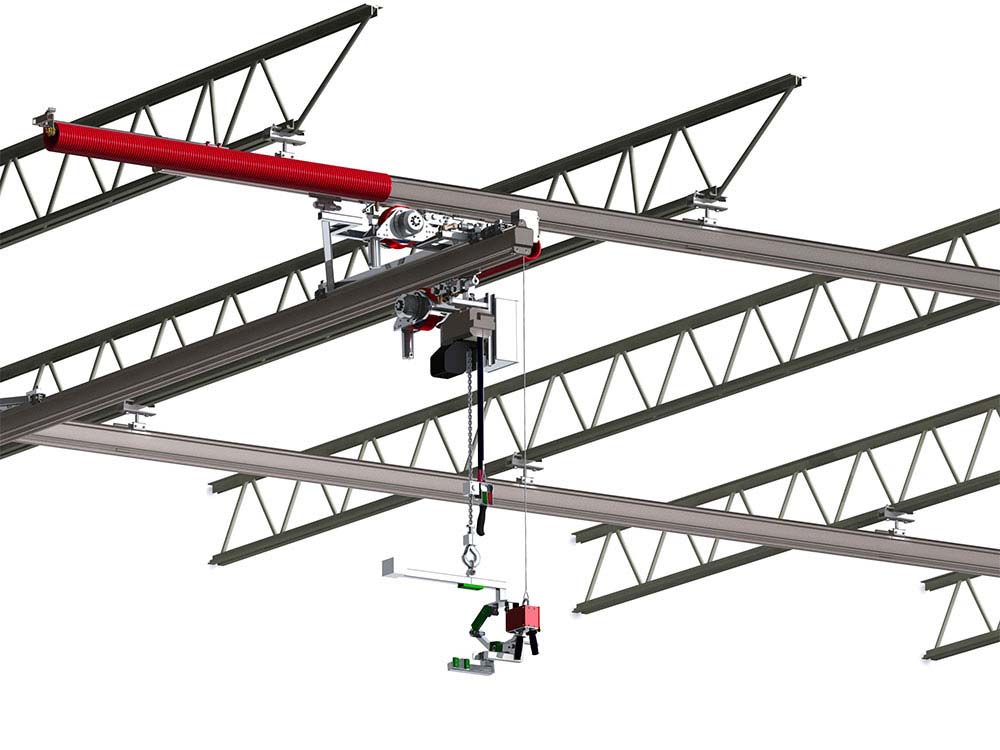

The monorail workstation crane system typically consists of one or more rails, which are installed either on the ceiling of a cleanroom or supported by columns. The crane system travels along the rails in straight or curved paths to lift, transfer and position materials. The primary function of this monorail system is to move materials from one point to another while meeting cleanroom environmental requirements.
Main Components of Cleanroom Monorail Workstation Crane
Rail: The main load-bearing structure for equipment operation, manufactured from high strength, corrosion resistant materials such as aluminum alloy or stainless steel to adapt to cleanroom environments.
Lifting Hoist: Includes electric or manual lifting devices, which are used to connect the crane unit with the sling for lifting and lowering materials.
Moving Device: A moving device installed on the track, which can be a pulley, wheel, etc., to help the crane move smoothly on the track.
Control System: Used to operate and control the movement and lifting functions of the crane, usually equipped with a touch screen or button panel.
Sensor: Monitors the system status and position to ensure accurate and safe operation.
Advantages of Cleanroom Monorail Bridge Crane
Makes full use of overhead space without occupying floor area, ideal for equipment‑dense, space‑limited cleanrooms.
Low running resistance, smooth lifting and operation, effectively reducing vibration and noise.
Clear monorail path, suitable for point‑to‑point or linear transportation, improving workstation‑level material flow efficiency.
Supports manual or electric operation, reducing manual labor intensity.
Modular combination of rails, suspensions and lifting units allows easy customization according to load, span and workstation layout.
Technical Parameters of Cleanroom Monorail Overhead Crane (Customizable)
| Item | Technical Specification |
|---|---|
| Rated Load | 150 kg - 2000 kg |
| Cleanliness Class | ISO Class 5 - Class 8 |
| Lifting Method | Cleanroom electric hoist, fiber rope hoist |
| Control Method | Pendant control, wireless remote control, PLC control |
| Lifting Speed | Customizable according to requirements |
| Travel Mode | Manual / Electric |
| Power Supply | AC 380 / 440V |
| Application Environment | Cleanroom, semiconductor, pharmaceutical, precision electronics, food industry |
Case Study: Semiconductor Facility Equipment Installation and Material Handling Project

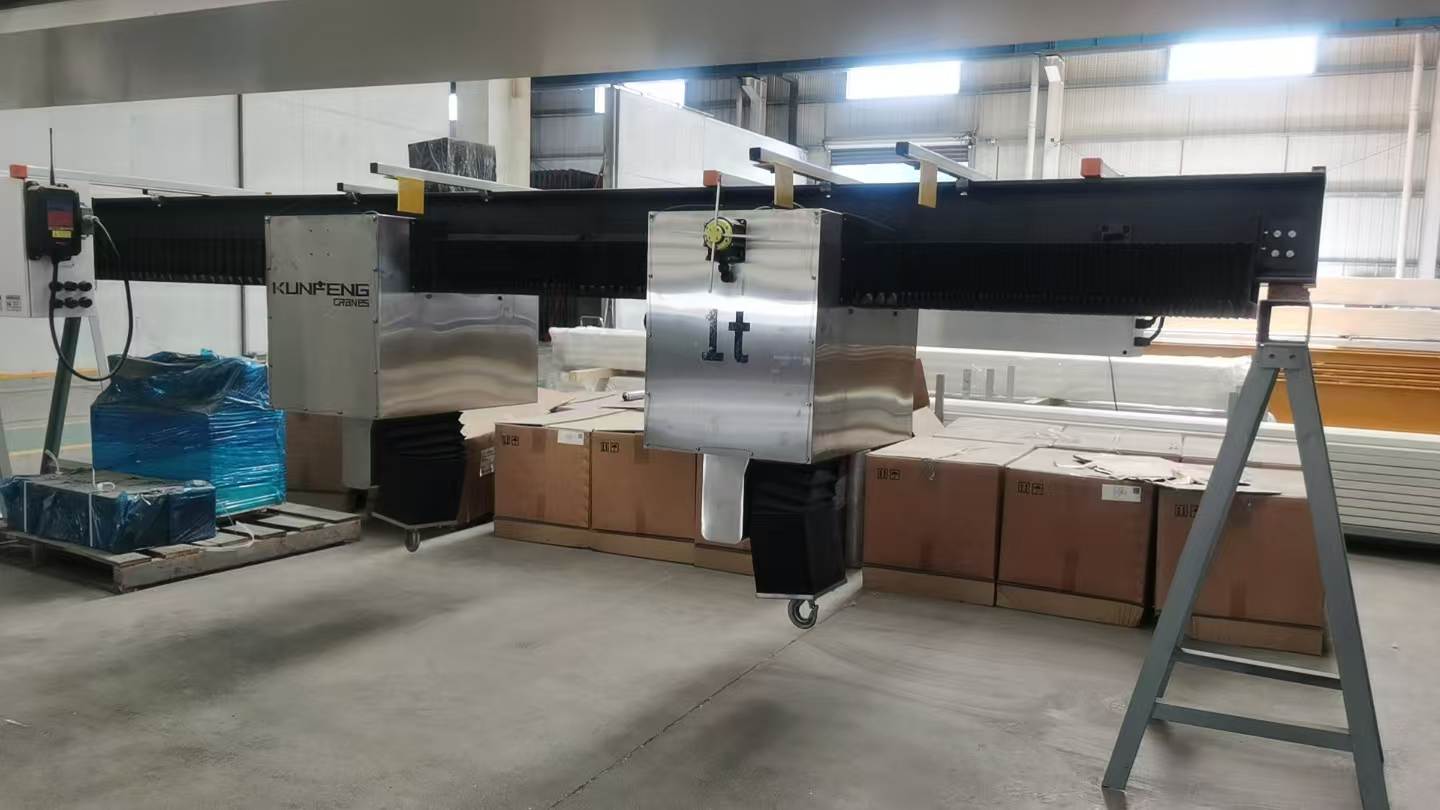

A European semiconductor manufacturer required the transportation of precision equipment components and production tools within an ISO Class 7 cleanroom during wafer manufacturing operations. Due to the relatively heavy weight of the production equipment, strict cleanliness requirements and high positioning accuracy demands, conventional lifting equipment could not meet the operational requirements. The customer purchased a customized cleanroom monorail bridge crane system from KUNFENG. Based on the layout of the cleanroom facility, top running single rail travel system was designed and integrated with cleanroom electric lifting device. The system enables smooth lifting, horizontal movement and precise positioning of workpieces through wireless remote control operation.
Since the lifting system was put into operation, it has enabled fast and safe transportation of precision materials weighing several hundred kilograms, improved production line efficiency, and reduced the risk of product damage caused by manual handling.
If you are looking for a monorail bridge crane for cleanroom workshops, we can provide customized lifting solutions that comply with international cleanroom standards. Contact us today to receive professional technical support and a prompt quotation.
