Double Aluminum Rail Beam Gantry Crane for Cleanrooms

Double Aluminum Rail Beam Gantry Crane for Cleanrooms

The double aluminum rail gantry crane for clean room uses a gantry structure composed of special aluminum alloy profile rails and stainless steel supports, and is combined with a clean-grade chain hoist or belt hoist to achieve material handling.

Category: Gantry Crane
Hits: 79
Updatetime: 23-May-2025

The double aluminum rail beam gantry crane for clean room consists of two load-bearing rail beams arranged in parallel to form a bridge. Through the gantry structure composed of special aluminum alloy profile rails and stainless steel supports, it can achieve 0.5-5 tons of vertical and horizontal dual-axis operation with clean-grade chain hoists or belt hoists. It is specially designed for ISO 4-8 clean rooms to ensure dust-free and low static electricity throughout the process, and provide full-load stable and accurate lifting and lateral movement capabilities.

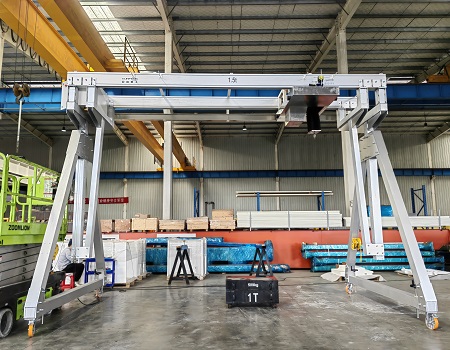

Cleanroom double beam gantry crane

Outstanding features of the double aluminum rail beam gantry crane

  ● The two aluminum alloy rail beams are connected in parallel to share the load, so that the main beam and the track are more evenly stressed, reducing the distortion and deformation of the single track and ensuring long-term stable operation.

  ● The rail beam is made of aviation-grade aluminum alloy, anodized, with a smooth, wear-resistant, anti-static and non-corrosive surface, which meets the dust-proof requirements of clean rooms.

  ● Optional chain or belt electric hoists, fully enclosed shell, low-dust coating inside, stable lifting and low noise, minimize particle emission.

  ● Equipped with high-quality polyurethane universal wheels, it can be moved to the required position at any time according to working conditions.

  ● Equipped with overload/pressure loss limit, anti-unhooking device, emergency stop button and software and hardware double-layer speed limit to ensure the safety and reliability of the whole process of lifting and walking.

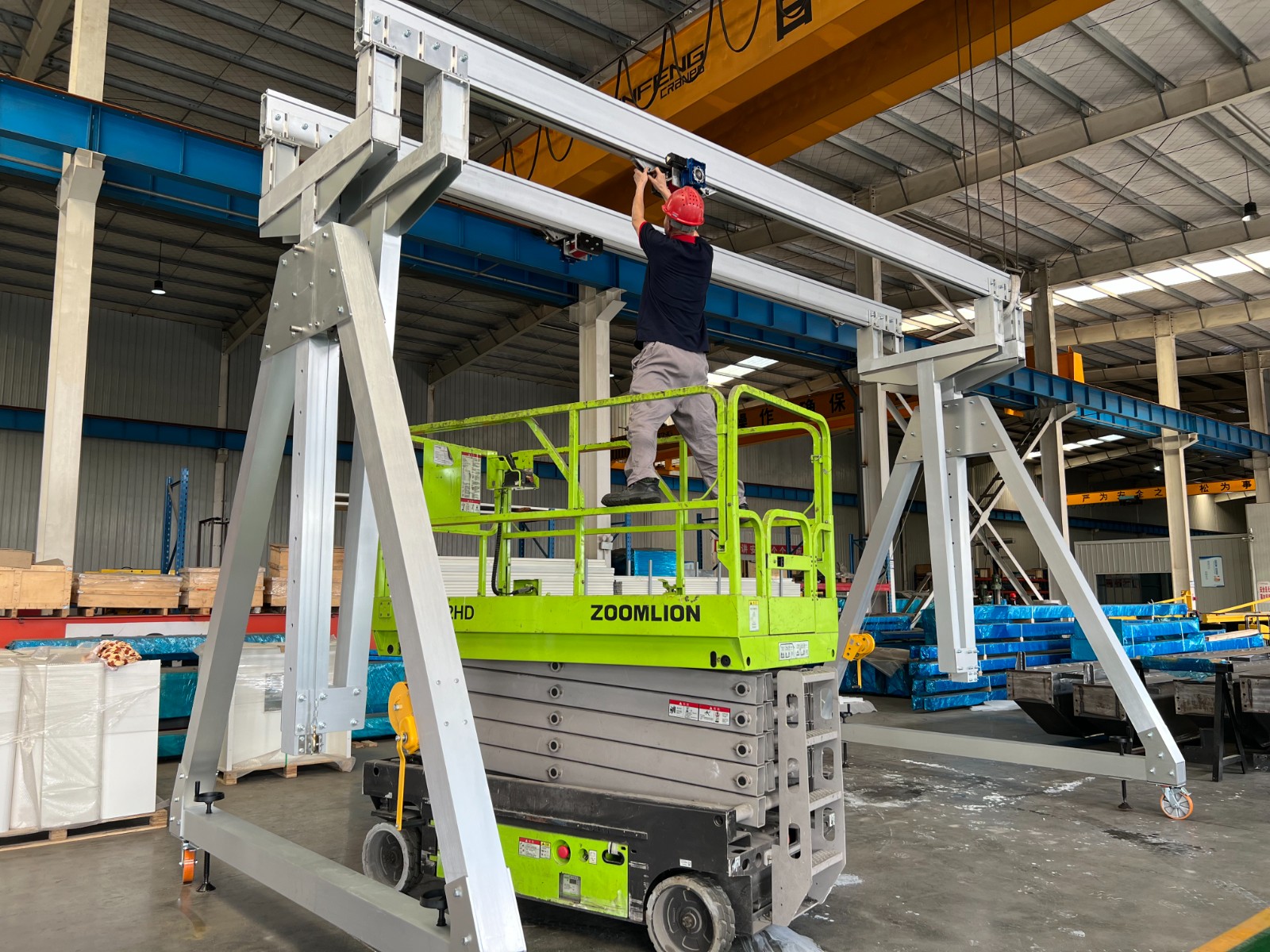

Aluminum rail beam gantry

Main technical parameters (reference)

Parameters

Typical values

Carrying capacity

0.2–5 t

Span of rail beam

3 m – 20 m

Lifting height

Customized on demand

Travel speed

10–20 m/min

Lifting speed

Frequency conversion

Control mode

Handle/Wireless remote control/PLC/

Cleanliness level

ISO 4–8 (100–100,000 grade)

Material

Aluminum alloy rail beam + Stainless steel gantry


Our customization and service

  ● Solution consultation: On-site survey of clean area plan, process flow, output of whole machine layout and operation plan;

  ● Pre-installed manufacturing: Pre-installed modules are produced in ISO 14644-1 standard clean workshop to ensure cleanliness when leaving the factory;

  ● Professional installation: Technical team on-site lifting, positive and negative pressure control, link debugging until cleanliness verification;

  ● Training and maintenance: Provide operation training, maintenance manuals, regular inspections and spare parts, and respond to maintenance needs 24 hours a day.

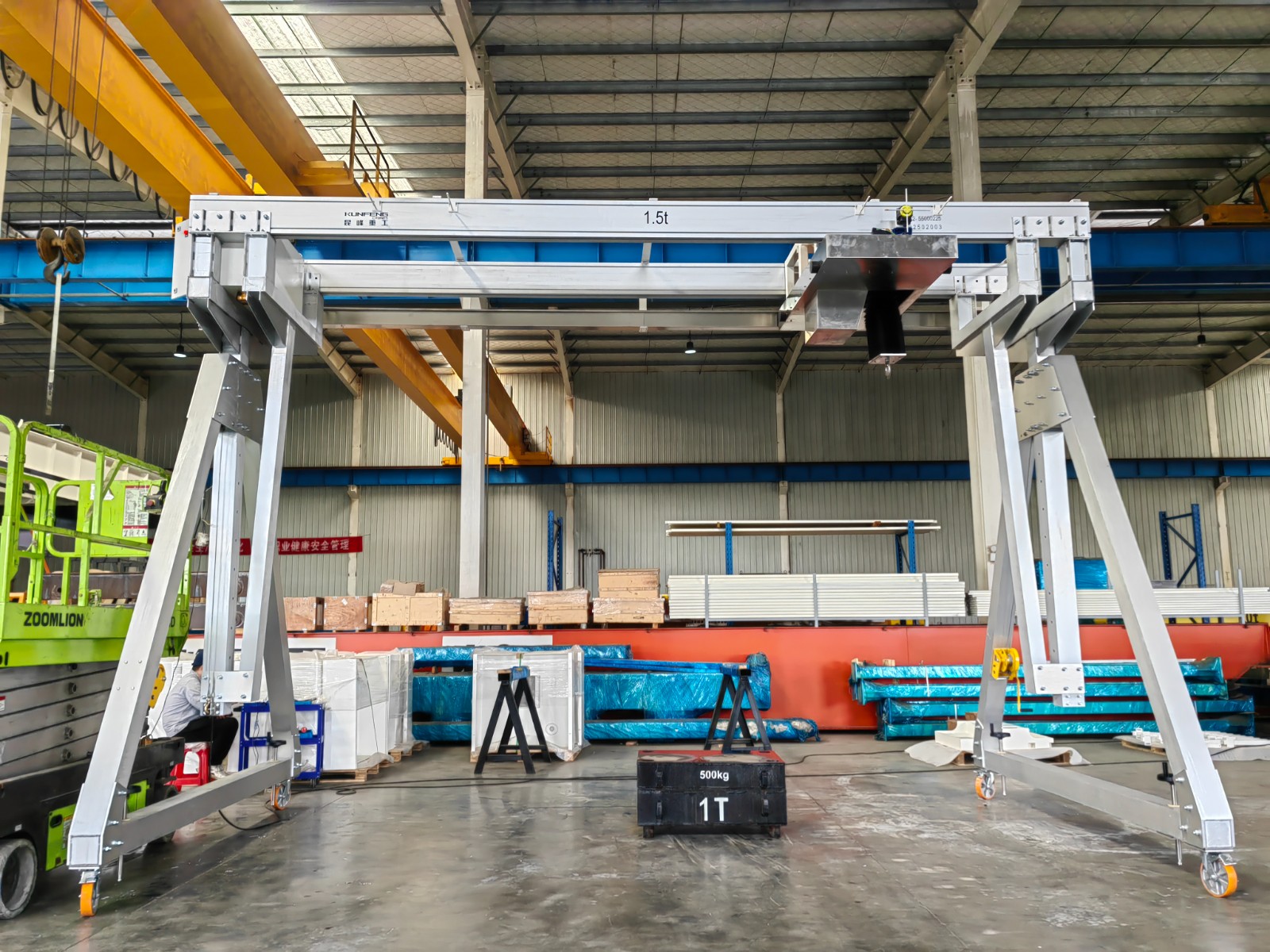

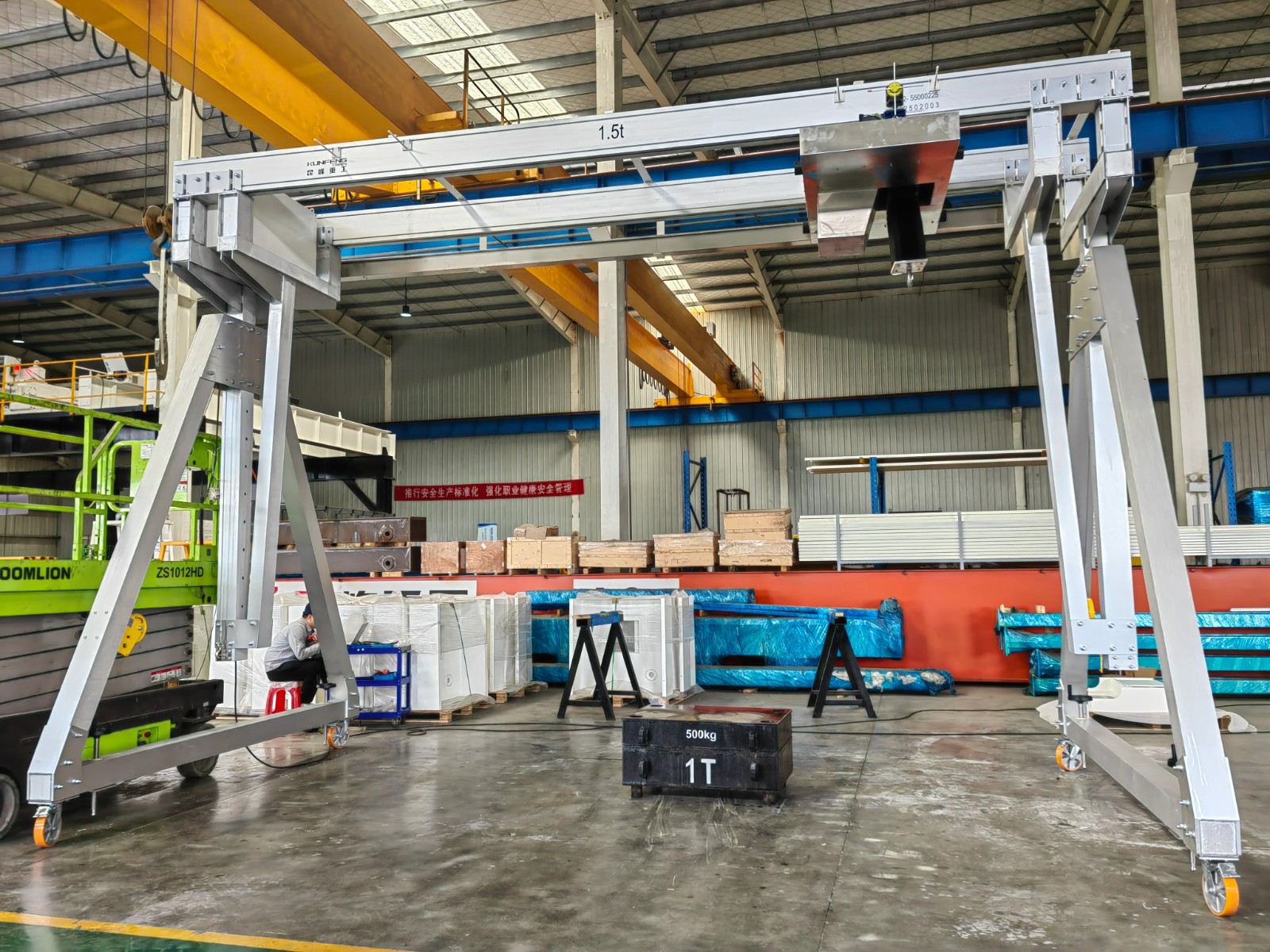

1.5t double aluminum rail beam gantry crane

The double aluminum rail beam gantry crane for clean room provides a safe, efficient and visual new material handling solution for the high-end clean manufacturing field with its zero dust installation, high clean design, double aluminum rail load sharing and intelligent network monitoring. Welcome to contact us to provide you with the best customized design and reasonable quotation!
