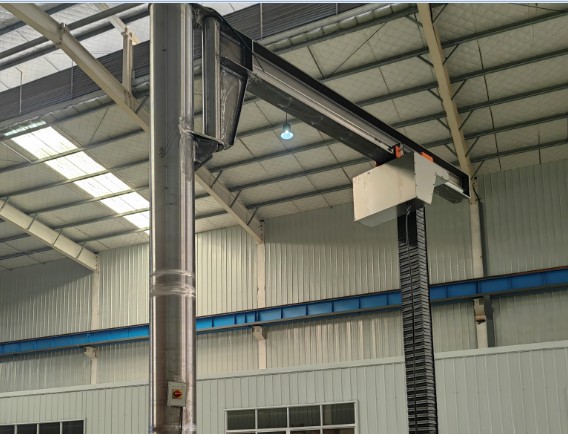

Portable electric jib crane for clean rooms is a device designed for environments that require high cleanliness. It combines electric operation and portability to enable flexible movement and efficien

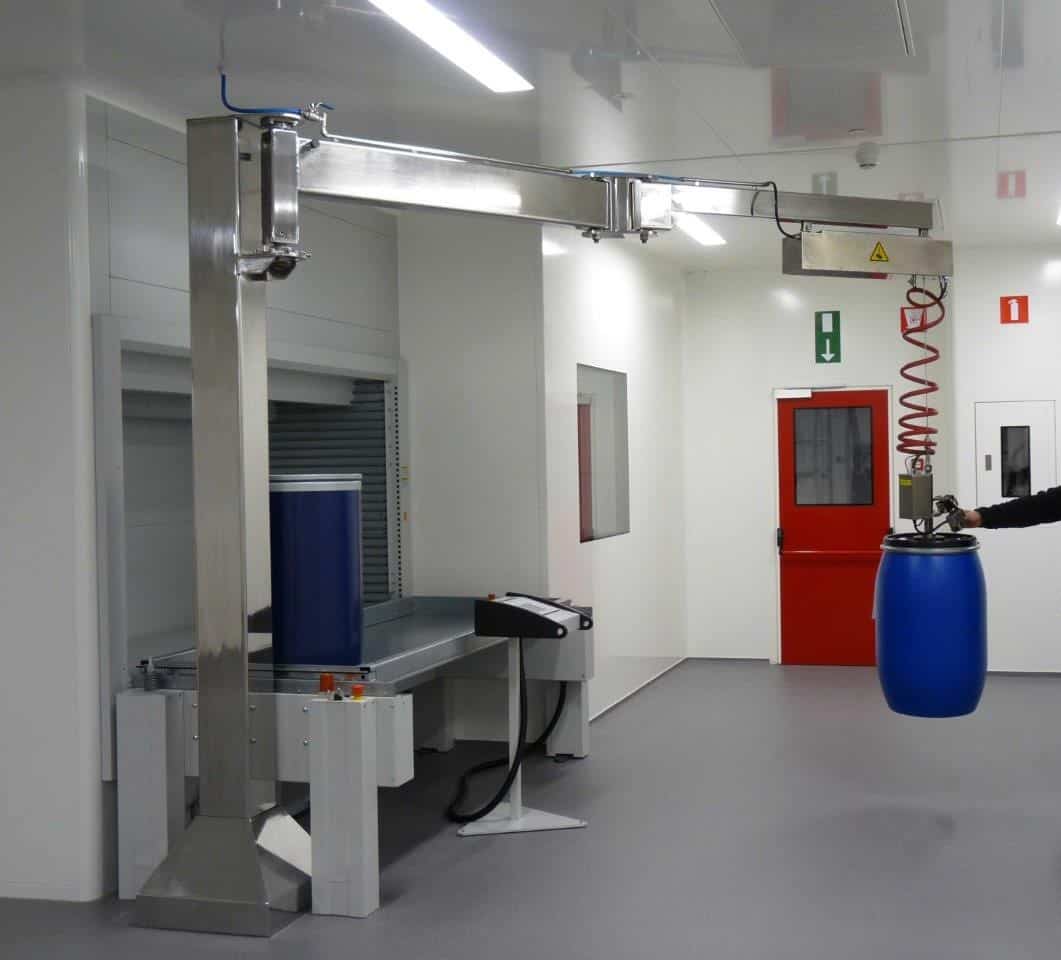

Portable electric jib crane for clean rooms is a device designed for environments that require high cleanliness. It combines electric operation and portability to enable flexible movement and efficient lifting of materials in clean rooms. Its design uses smooth, easy-to-clean materials to prevent contamination while providing safe and stable load handling capabilities. The equipment is suitable for industries such as pharmaceuticals, electronics and semiconductors to help improve work efficiency while maintaining a clean environment.
Column: The base part of the cantilever crane, usually fixed to the ground or mounted on a supporting structure, providing stability and support for the entire device.
Cantilever: A horizontal arm extending from a vertical pillar for supporting and moving loads, and the length can be customized as needed.
Lifting device: Includes an electric hoist or crane for lifting and moving loads. It is usually electrically driven to improve operating efficiency.
Rotating device: Allows the cantilever to rotate on the vertical pillar, providing a larger working range and flexibility.
Control system: Includes electric control switches and an operating panel for precise control of the lifting process to ensure safety and efficiency.
Specification | Reference Data |
Cleanroom Classification | ISO Class 5–8 |
Lifting Height | 2–4 m, customizable |
Jib Arm Length | 2–5 m, customizable |
Lifting Speed | Approximately 0.5–5 m/min |
Power Supply | 380 V, 3-phase, 50 Hz |
Control Voltage | 24 V control circuit, subject to electrical configuration |
Base Configuration | Portable weighted base with lockable casters and stabilizing supports, or floor-anchored base, depending on load and site conditions |
Slewing Angle | 360° |

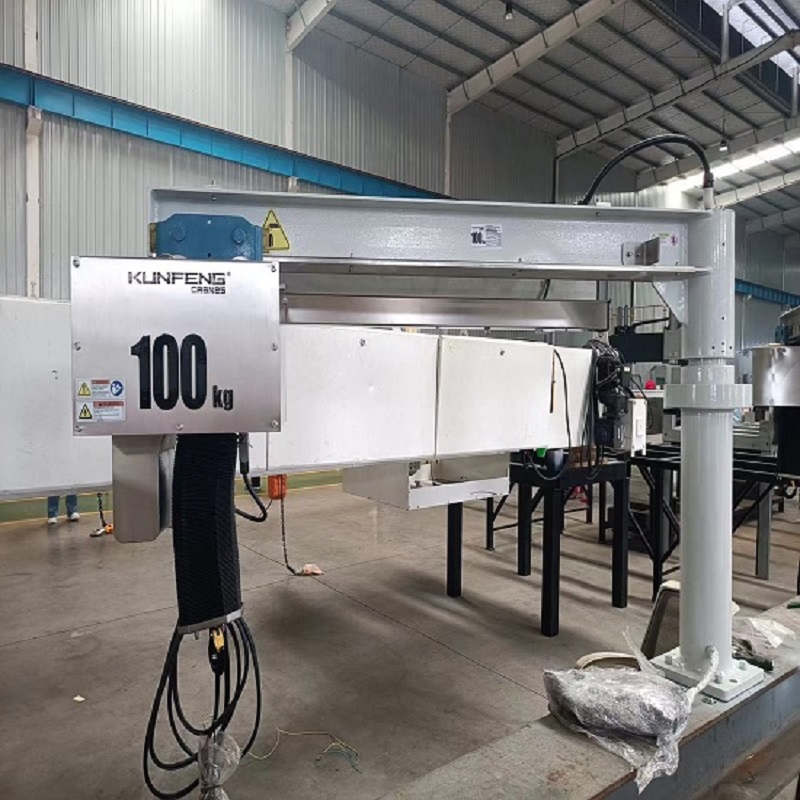

Rated Load Capacity | 100 kg |
The design of the cantilever crane allows flexible movement and operation in the clean room, improving work efficiency and space utilization.
Made of smooth, seamless materials, it is easy to clean and maintain, meeting the cleanliness requirements of cleanrooms.
The electric drive system reduces the need for manual operation, improves load stability and precision of operation.
Designed to meet cleanroom safety standards, it is equipped with protective devices to prevent accidents and damage.
Due to its cantilever design and compact structure, it can work efficiently in limited spaces without taking up floor space.
Pharmaceutical industry: Used to transport drugs, raw materials and equipment to ensure operations in a clean environment and prevent contamination.
Semiconductor manufacturing: Provides precise material handling to ensure high cleanliness during production.
Electronic product production: Suitable for assembly and movement of electronic components to avoid contamination and electrostatic interference.
Medical device production: Ensure the cleanliness of the production environment and protect high-value medical devices from contamination.
If you are looking for column jib cranes for cleanroom workshops, get in touch with us for professional customized solutions and product quotations.
