The stainless steel wall mounted jib crane is designed for high cleanliness production environments. It features corrosion resistance and easy cleaning, supports flexible 180° rotation, meets the requirements of cleanroom workstation lifting and hygienic handling.

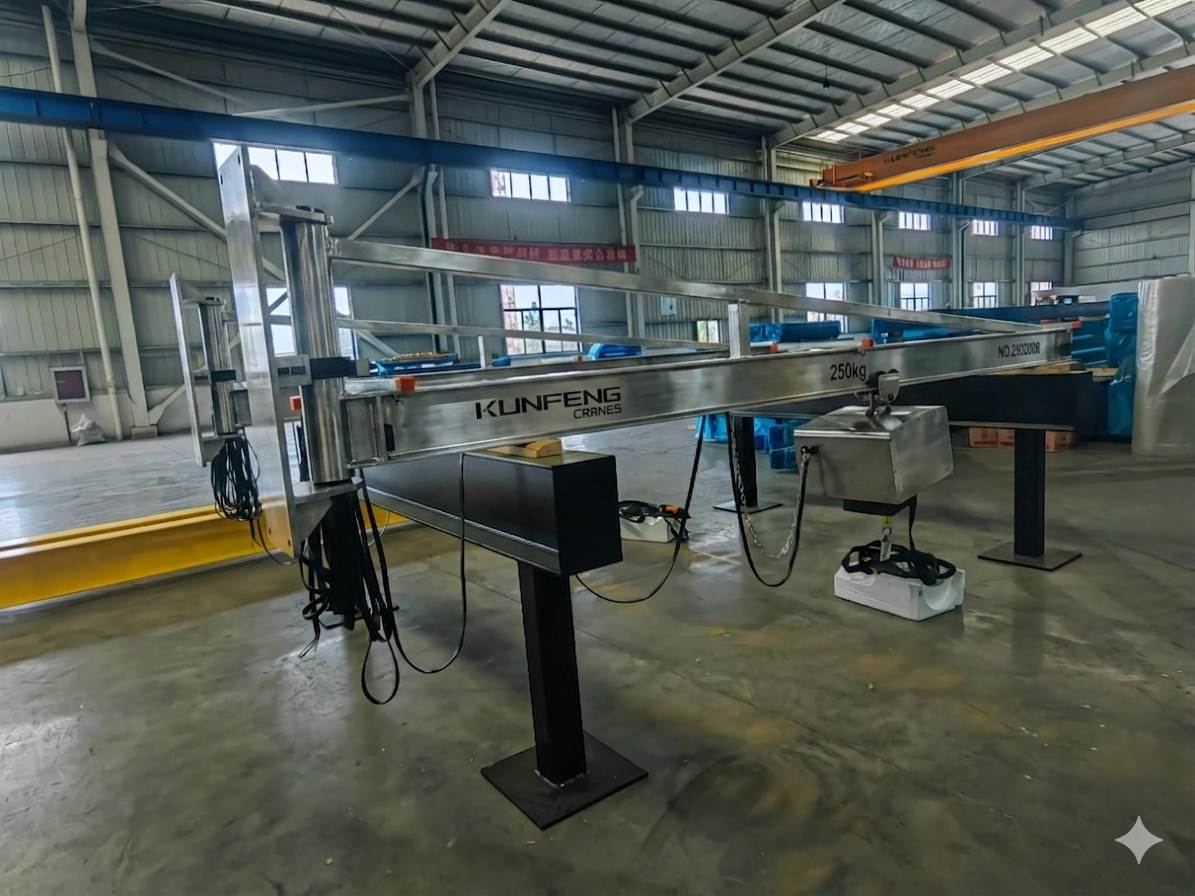

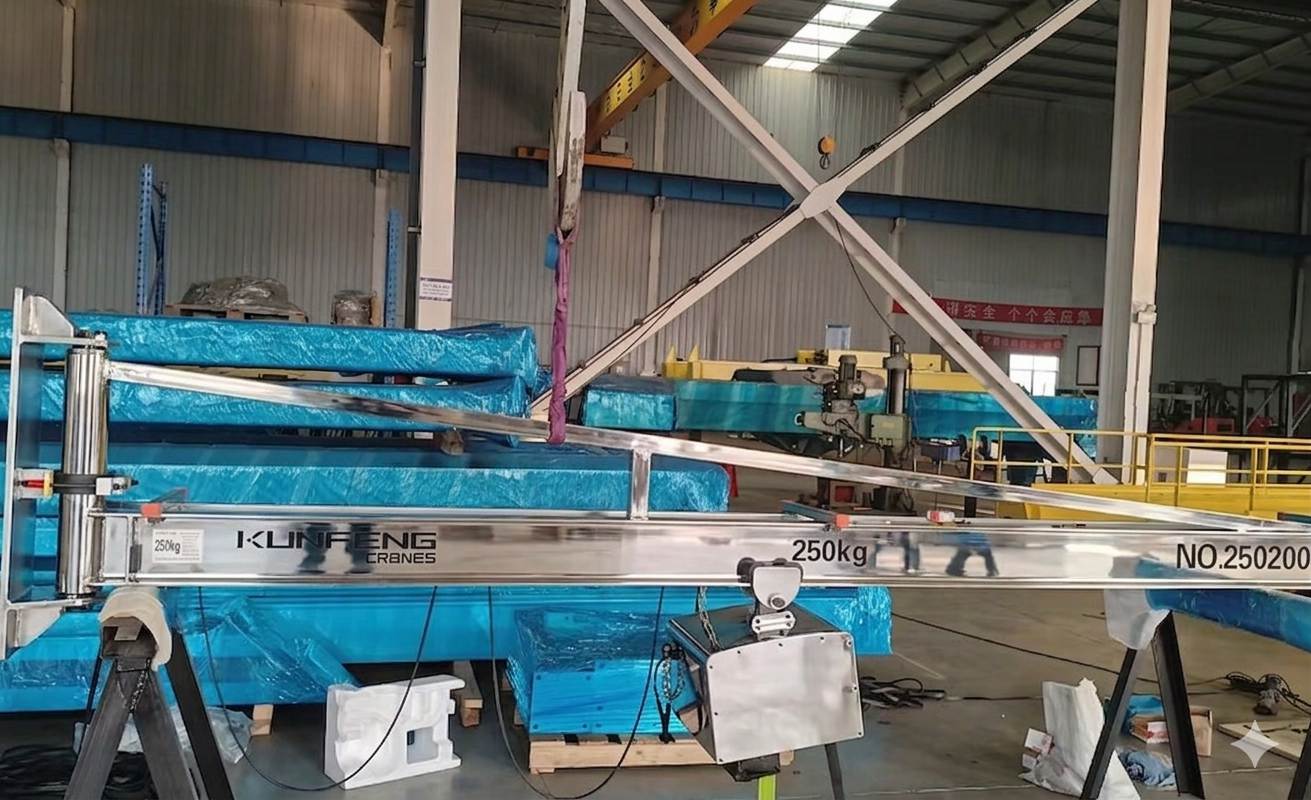

Stainless steel wall mounted jib crane is a light duty workstation lifting equipment installed on wall, column or steel structure. Compared with traditional carbon steel jib cranes, the stainless steel structure effectively prevents rust and particle contamination, making it ideal for production environments with high hygiene and cleanliness standards. Its wall-mounted design saves floor space and makes full use of workshop wall areas for flexible and efficient material handling.
Hygienic Grade Stainless Steel Structure for Cleanroom Use
The stainless steel wall mounted jib crane features a hygienic design that minimizes dust accumulation and contamination risks.
Made of SUS304 / SUS316 stainless steel
Polished surface to reduce dirt adhesion
Resistant to acid, alkali corrosion and humid environments
Low-particle emission operating structure
Easy for daily washing and disinfection
For food, dairy, beverage and pharmaceutical industries, this stainless steel jib crane effectively reduces production contamination and complies with GMP, FDA and cleanroom manufacturing standards.
Wall Mounted Design Maximizes Space Utilization
Compared with column mounted jib cranes, the wall mounted structure does not require additional floor support columns, helping reduce workspace occupation and making it ideal for compact cleanroom environments.
Mounted on walls or steel structures
Covers fixed workstation areas
Improves production line handling efficiency
Ideal for equipment workstation lifting
Supports continuous multi-station handling
The jib arm enables smooth 180° horizontal rotation, allowing flexible lifting operations within the coverage area based on on-site layout and enhancing operator efficiency.
Compatible with Multiple Cleanroom Hoisting Systems for Precise Handling
Stainless steel manual chain hoists
Cleanroom electric chain hoists
Cleanroom belt hoists
Electric fiber rope hoists
For semiconductor, wafer and precision instrument industries, anti-static systems, variable frequency control and precision positioning functions can be integrated for more stable lifting control.
Technical Parameters (For reference only, customization available)
| Item | Specification |
|---|---|
| Installation Type | Wall Mounted / Steel Structure Mounted |
| Rated Load | 100kg ~ 2000kg |
| Arm Length | 2m ~ 6m |
| Lifting Height | Customized according to on-site requirements |
| Rotation Angle | 180° (270° customizable) |
| Operation Mode | Manual / Electric |
| Lifting Device | Cleanroom Electric Chain Hoist / Belt Hoist |
| Lifting Speed | 2 ~ 8 m/min |
| Trolley Travel Speed | 5 ~ 15 m/min |
| Power Supply Voltage | 220V / 380V / 400V |
| Control Mode | Push Button Control / Remote Control |
| Material | SUS304 / SUS316 Stainless Steel |
| Surface Treatment | Polishing / Brushing |
| Cleanliness Class | ISO Class 5 ~ 8 |
| Protection Grade | IP54 / IP65 |
Material Lifting for Various High Cleanliness Industries
Food & Beverage Industry: Used for raw material handling, packaging lines, filling equipment maintenance and hygienic material lifting.
Pharmaceutical & Biotechnology: Suitable for sterile workshops, GMP production environments and clean laboratory equipment handling.
Semiconductor & Electronics: Used for wafer equipment maintenance, FOUP handling and precision electronic component lifting.
New Energy & Lithium Battery Industry: Lifting of battery materials and precision components in cleanroom workshops.
Semiconductor Cleanroom Application Case Study
A well-known semiconductor manufacturer required a lifting solution for silicon wafer equipment maintenance and precision component handling inside Class 100 cleanroom. Traditional carbon steel lifting equipment presented risks of surface rust, particle contamination and lubricant leakage, making it unsuitable for the cleanroom environment.
Based on the customer's requirements, our engineering team customized a stainless steel wall mounted jib crane solution:
Equipped with cleanroom lifting hoist system
Polished SUS304 stainless steel structure
Sealed electrical control system
Anti-static control system
Low particle emission operating structure
180° rotation coverage design
The final solution successfully met the cleanroom operational standards. After installation, the customer achieved more stable and efficient lifting operations during equipment maintenance and precision component handling, while improving overall production efficiency by 35%.
Frequently Asked Questions
Q: What is the difference between 304 and 316 stainless steel?
A: SUS316 stainless steel offers superior corrosion resistance and is better suited for humid, salty or chemically corrosive environments.
Q: Can the wall mounted jib crane be customized?
A: Yes. The jib crane can be customized according to customer requirements, including lifting capacity, jib arm length, lifting height, rotation range and cleanroom classification.
Q: What rotation angle does the stainless steel wall mounted jib crane support?
A: Standard configuration supports 180° flexible rotation; 270° rotation is available for customized applications.
Q: What is the load capacity range of your wall mounted jib cranes?
A: The load capacity ranges from 100kg to 2000kg, with custom solutions available for specific applications.
As a professional cleanroom lifting equipment manufacturer, KUNFENG CRANES provides customized stainless steel wall mounted jib crane solutions for various industrial applications. Contact our engineering team today for professional technical consultation and crane selection support.
