Lithium batteries are the backbone of modern portable electronics and electric vehicles. However, despite their remarkable capabilities, these power sources possess a sensitive nature that demands precision in their manufacturing processes. Even minute traces of moisture can wreak havoc on battery components, leading to compromised performance, reduced longevity and potential safety hazards.

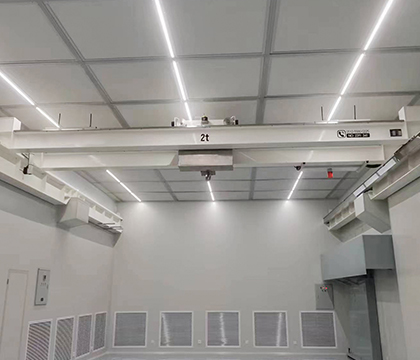

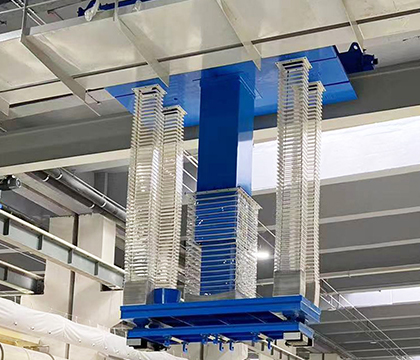

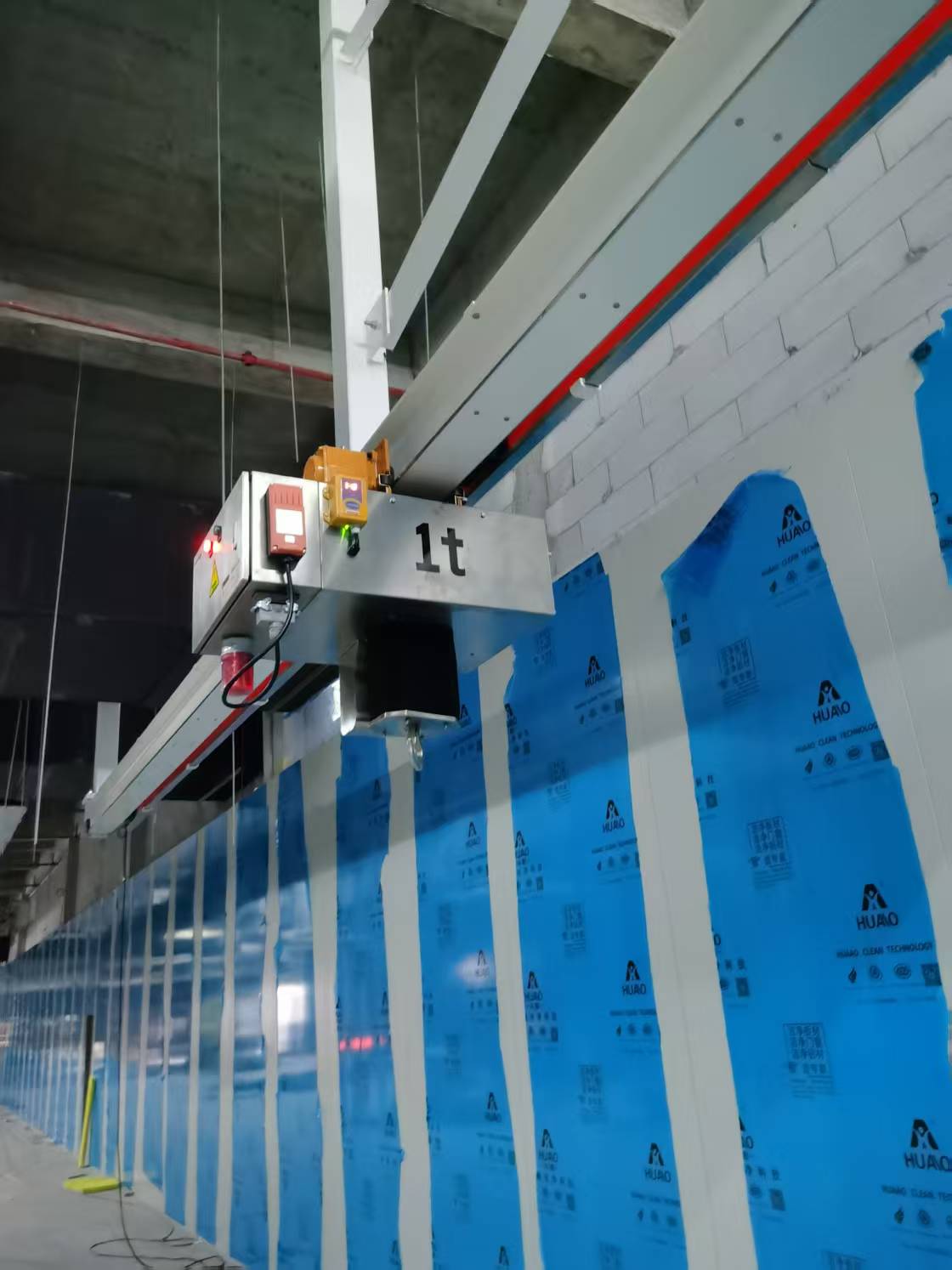

Cleanroom monorail crane is essential in this process, designed to minimize particle contamination and provide precise, smooth movements crucial for handling delicate components. Additionally, these cranes enhance workplace safety by automating the lifting and transport of heavy materials, reducing the risk of injuries and exposure to harmful substances.
The clean rooms for battery manufacturing usually use the following classes of cleanness ISO 8, ISO 7, and ISO 6 per ISO 14644-1 standard or equivalent classes 100,000; 10,000; and 1,000 per FS209E standard. These classes belong to the middle class of cleanliness.
It adopts fully enclosed structure, and its moving parts are optimally designed to reduce friction and wear, controlling particle generation at the source.
Equipped with comprehensive anti-static measures to effectively avoid dust adhesion or potential safety hazards caused by static accumulation.
Food grade or cleanroom grade lubricants are used to ensure no oil mist or leakage during operation.
Modular assembly adapts to complex workshop layouts and facilitates production line expansion and renovation.
Variable frequency control or servo drive systems enable smooth start and stop, minimizing impacts on precision equipment.
Furthermore, the retrofitting with partially and/or fully automatic solutions is possible.
High Precision Control: Thanks to the PLC component, an upgrade to a touchless and millimeter-precise position sensor system can be quickly and easily implemented without introducing contaminants into the controlled environment.
Tandem operation function for simultaneous control of two or more crane systems, synchronization of several crane axes with millimetre accuracy,
Different qualities can also be chosen for the model that is completely made of stainless steel.
Specification | Reference Data |
Crane Type | Cleanroom monorail crane |
Rated Load Capacity | 125–2,000 kg |
Lifting Height | 3–10 m, subject to building height and process requirements |
Hoisting Speed | Approximately 0.5–5 m/min; variable-speed control available |
Trolley Travel Speed | Approximately 5–20 m/min; adjustable to suit the handling process |
Positioning Control | Pendant control as standard; PLC, position sensors, and automated control available as options |
Anti-Static Measures | Grounding and other anti-static measures configurable according to the site’s ESD requirements |
Main Structure | Coated steel or stainless steel 304; stainless steel 316 available for selected applications |
Power Supply | 380 V, 3-phase, 50 Hz as a reference |
If you are looking for lifting equipment suitable for lithium battery production, cleanroom monorail cranes are ideal choice for efficient and safe production. Click here to contact us for professional technical advice and project quotations.
