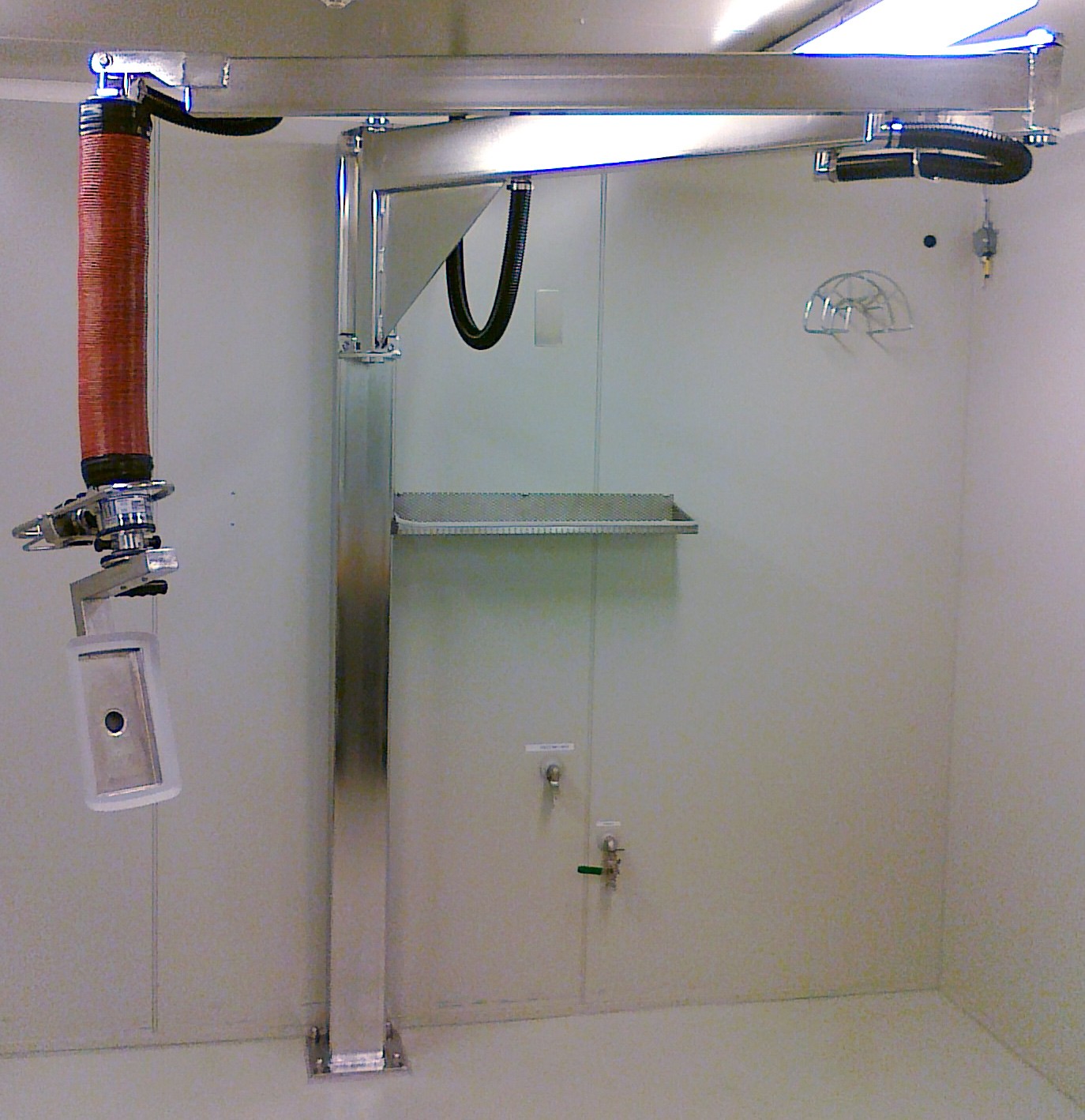

The stainless steel folding arm jib cranes are floor mounted, featuring excellent corrosion resistance and flexible slewing, suitable for material lifting in clean room workshops.
Cleanroom folding arm rotating jib cranes are intelligent lightweight lifting device specially designed for high cleanliness production environments. Adopting folding arm linkage structure, achieve wider operating coverage and greater operational flexibility within limited space. Meanwhile, through optimized material selection and structural sealing, the jib cranes effectively control particle emission and contamination risks, ensuring the equipment consistently meets ISO cleanroom standards during operation.
Main Components of Clean Room Folding Arm Jib Crane
Fixed base: Supports the weight of the entire equipment and provides stability. It is usually made of stainless steel materials to ensure applicability in clean environments.
Folding arm structure: Consist of multiple sections of foldable or retractable booms. The arm length and angle can be flexibly adjusted through joints and rotating mechanisms to adapt to different operating ranges.
Lifting mechanism: Equipped with manual or electric hoists. It is mostly dust-proof and anti-pollution designed in clean room environments. It runs smoothly and has low noise.
Rotation mechanism: Connects the folding arm and the base to allow the boom to rotate horizontally. The angle range can be customized according to specific needs.
Surface treatment: All surfaces are polished or specially coated to ensure durability and cleanliness and prevent the accumulation of particles or pollutants.
Advantages of Stainless Steel Folding Arm Jib Crane
Made of stainless steel materials, the surface is polished or specially coated, which meets the strict requirements of clean room for dust-free and sterile environment.
The folding arm design can freely adjust the working radius and angle, and with the 360 degree rotation function, it is suitable for small spaces and complex operation scenarios.
Occupies a small area and suitable for clean rooms or laboratories with limited space. At the same time, it is easy to install and adapt to a variety of fixing methods.
The structural design is stable and durable, and can withstand long-term and high-frequency use requirements.
Equipped with multiple protection devices, such as overload protection and limit devices, to ensure safe operation.
Professional Technical Parameters (Customizable)
| Item | Technical Specification |
|---|---|
| Rated Load | 100 kg - 2,000 kg |
| Slewing Angle | 0° - 360° |
| Folding Arm Length | 2 m - 6 m |
| Lifting Height | ≤ 5 m |
| Operation Mode | Manual / Electric |
| Lifting Speed | 0.5 - 8 m/min (variable frequency adjustable) |
| Cleanliness Class | ISO Class 5 - Class 8 |
| Material | SUS304 / SUS316 |
| Control System | Push-button control / Remote control |
| Protection Class | IP54 - IP65 |
As an essential handling equipment for high cleanliness industrial environments, the cleanroom folding arm jib crane combines the advantages of dust-free design, precise control and flexible structure. It is widely used in semiconductor, pharmaceutical, food and precision manufacturing industries. If you are looking for cleanroom lifting solutions, click here to contact us for professional technical consultation and product quotations.
