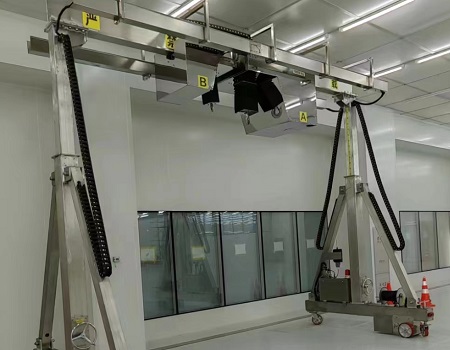

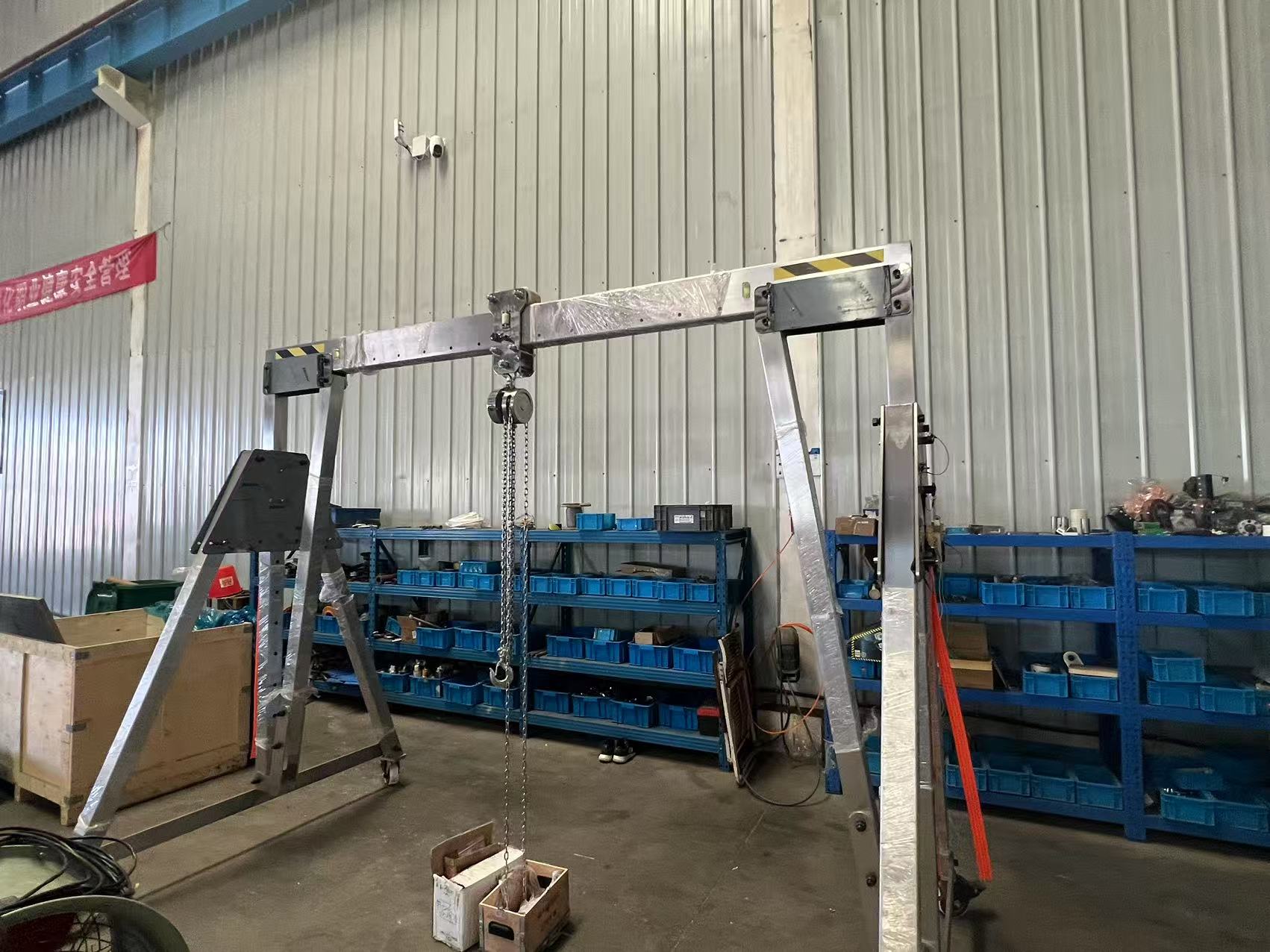

This cleanroom moveable crane is constructed from corrosion resistant 304 stainless steel, featuring adjustable height and flexible mobility to meet material handling requirements in cleanroom workshops.
Stainless steel moveable crane (also known as gantry crane) is a material handling equipment specially designed for ISO 5 - 8 cleanrooms. It features low particle emission, easy cleaning, corrosion resistance and high precision handling, and is widely used in semiconductor, pharmaceutical, food processing, precision manufacturing and other industries.
Structure of Stainless Steel Moveable Crane
Gantry Structure: Constructed with 304 stainless steel columns and beams, offering high stability and strong load-bearing capacity.
Lifting Mechanism: Equipped with cleanroom chain hoist or belt hoist to achieve smooth lifting and precise positioning.
Travel System: Fitted with universal silent casters, supporting manual or electric movement for flexible multi-station handling.
Control System: Operated via handheld push-button remote controller for convenient operation.
Technical Features of Stainless Steel Gantry Crane
All-stainless steel structure with low particle emission
Enclosed transmission system for dust and contamination prevention
Low-sway design for high positioning accuracy
Supports quick assembly and disassembly
Smooth operation, ideal for handling precision equipment
Technical Parameters (Customizable)
| Item | Specification Range |
|---|---|
| Rated Load | 100 kg - 5,000 kg |
| Span | 2 m - 8 m |
| Lifting Height | 1.5 m - 6 m (adjustable) |
| Lifting Speed | 0.5 - 8 m/min |
| Travel Mode | Manual / Electric |
| Material | SUS304 / SUS316L |
| Cleanliness Class | ISO Class 5 - 8 |
| Control Method | Pendant / Remote Control |
| Power Supply | 220V / 380V |
| Surface Treatment | Polishing / Sandblasting |
Applications
Semiconductor wafer handling
Equipment hoisting in pharmaceutical workshops
Material transfer in food processing production lines
Precision equipment handling in laboratories
Lithium battery and new energy manufacturing workshops
If you are looking for moveable lifting equipment suitable for cleanrooms, please feel free to contact us for professional customized design and product quotations. We can provide the optimal solution based on your cleanliness class, load requirements and space layout.
